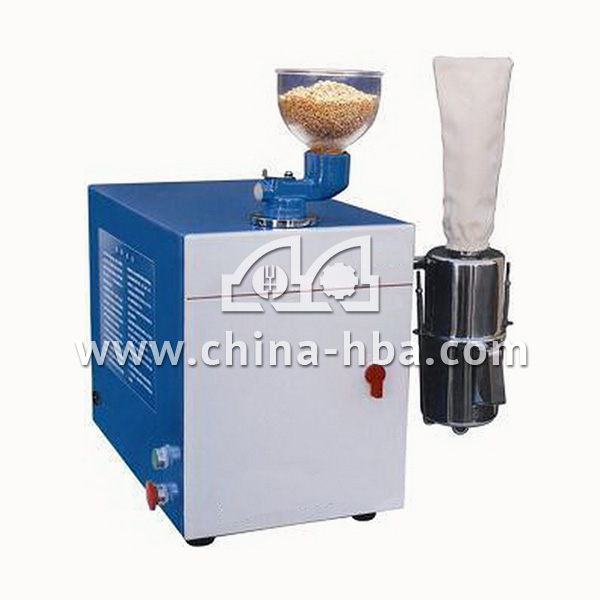

Hammer Type Whirlwind Mill(JXFM110)

Date:09-25-2016 Number of visits:3131 Font size:T|T
Description

JXFM110 hammer type whirlwind mill is an stable and endurable crushing instrument that has a beautiful appearance, compact structure, easy operation.
Features:

·The built-in temperature protector in the motor can stop the motor automatically once the motor temperature is higher than set value; when the temperature becomes normal, the motor can start again;
·The instrument can be matched with an auto feeder, which can control the feeding speed of sample with high moisture or grains with husks and improve crushing effect.
·The application scope includes gluten quantity and quality, grain viscosity, wheat falling number, etc.

Technical specification

Working power

AC220±10V  50Hz

Motor power

750W

Working chamber dia.

110mm

Hammer speed

16800r/min

Sieve pore dia.

0.5, 0.8, 1.5mm

Dimension

530mm×530mm×650mm

Total weight

51kg
