Roller Mill(HMJD)

Unit Machine

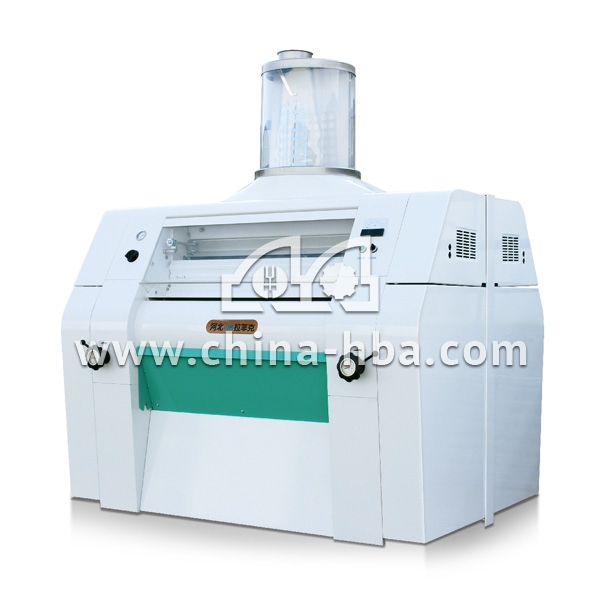

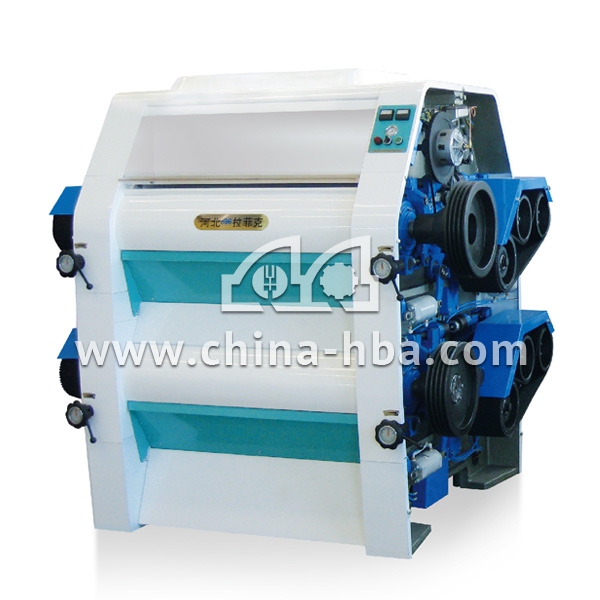

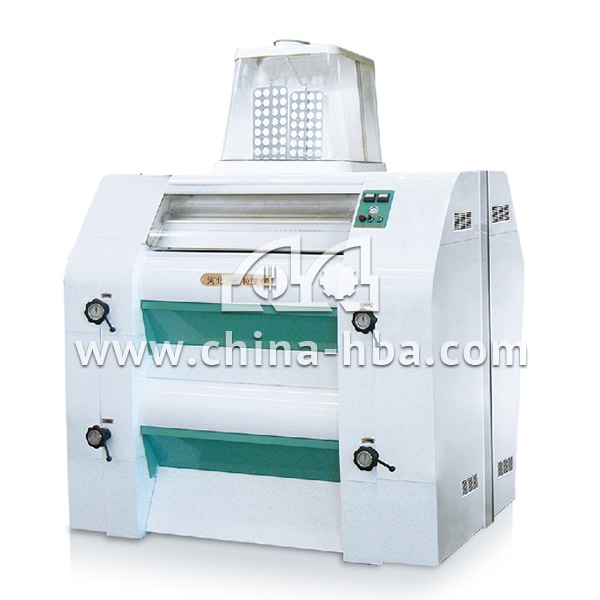

HMJD ROLLER MILL

• Reasonable guide slot design for the feeding roller facilitates the stock' s full distribution and uniform feeding.

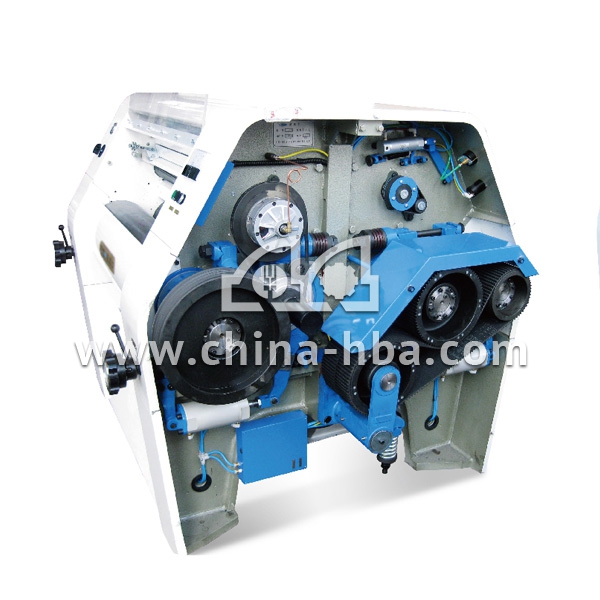

• Elastic tightening device ensures the belt's reasonable use, long service life and good stability in specific conditions.

• Cast iron base improves stability and shock resistance; it doesn't deform and maintains roller mill's precision.

• Main electric parts adopt famous brands like Siemens, SEW, E+H, SMC.

• Two break systems or two reduction systems are immediately successive without intermediate sifting.

• It saves plansifter' s area and pneumatic conveying costs.

• It saves equipment investment and floor area.

Model		HMJD 25/125	HMJD 25/100	HMJD 25/80	HMJD-8 25/125	HMJD-8 25/100
Roller size (ΦxL) (mm)		250×1250	250×1000	250×800	250×1250	250×1000
Feeding mode		Pneumatic servo feeding or frequency control feeding
Power / roller pair	Motor	Grade 6
Power / roller pair	Power (kw)	7.5-30	5.5-22	5.5-15	7.5-30	5.5-22
Weight (kg)		4100	3300	3000	6280	5600
Dimension (mm)		2060×1400×1920	1810×1400×1920	1610×1400×1920	2060×1490×2280	1810×1490×2280
